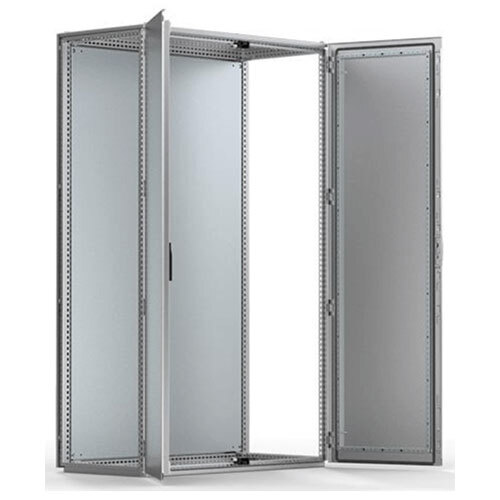

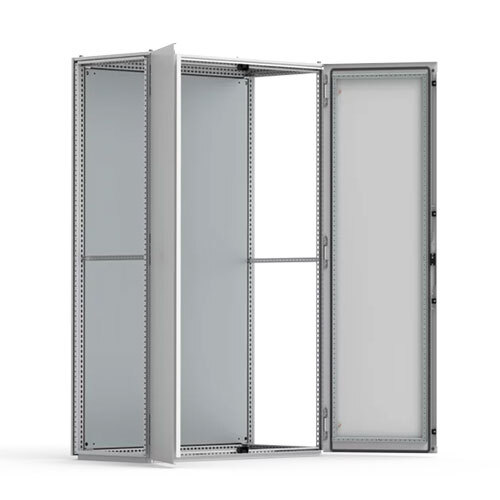

Mild steel combinable version, Double Door Enclosure - Floor Standing

Product Description

The nVent HOFFMAN MCD Series is a robust range of modular double-door enclosures made from high-quality mild steel. Designed for demanding industrial applications, these enclosures offer enhanced flexibility, superior protection, and easy customization.

Ideal for housing electrical and automation equipment, the MCD series supports various configurations and ensures long-lasting durability in indoor and covered outdoor environments

Features:

• Material: Frame: 1.5 mm painted steel. Doors: 2 mm painted steel. Rear, roof and side panels: 1.5 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
• Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
• Door: Mounted with four hinges. Including door frame with 25 mm hole pattern. Doors cannot be reversed. Separate doors to be ordered for left hand door locking.
• Rear panel: Fitted by M6 torx screws. Standard facilities for rear doors mounting. Split rear panels in 1600 mm wide enclosures.
• Side panels: Supplied as an accessory.
• Roof panel: Removable.
• Lock: Espagnolette 4-point locking system in the main door and 2-point locking system in the slave door. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
• Bottom plates: Consists of three or four (D>600) pieces.
• Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
• Earthing: All panels are earthed through their fittings and equipped with a separate earthing stud.
• Finish: RAL 7035 structured powder coating.
• Protection: Complies with IP55 | TYPE 12 | IK 10.
• Mounting requirements: Standard delivery ready for combined installation. For stand-alone installation add side panels
