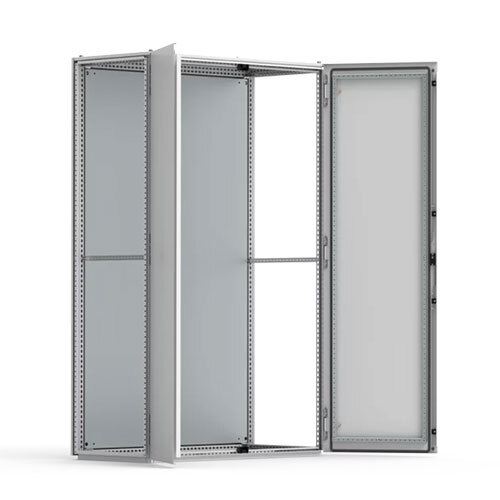

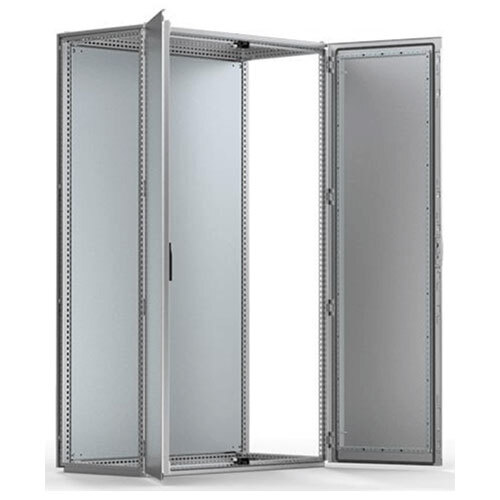

Stainless steel combinable version, Double Door Enclosure - Floor Standing

Product Description

The stainless steel double door combinable floor standing enclosure range, MCDS, is ideal for installation in confined spaces where a single door, when opened, would take up too much space in front of the enclosure. The doors loading capacity also increases as it is divided over two doors. With a IP 55 protection degree

Features:

• Material: Material: AISI 304L pre-grained stainless steel / AISI 316L. Frame: 1.5 mm. Door: 2 mm. Rear, roof and side panels: 1.5 mm. Bottom plates: 1.5 mm stainless steel. Mounting plate: 3 mm galvanized steel.
• Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660.
• Door: Mounted with four hinges. Including door frame with 25 mm hole pattern. Doors cannot be reversed. Separate doors to be ordered for left hand door locking.
• Side panels: Supplied as an accessory.
• Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting. Split rear panels in 1600 mm wide enclosures.
• Roof panel: Removable
• Lock: Espagnolette 4-point locking system in the main door and 2-point locking system in the slave door. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handle are available as accessories.
• Bottom plates: Two piece bottom plate in 1200 mm width, with injected polyurethane gasket to ensure maximum sealing.
• Mounting plate: Double folded and adjustable in depth by steps of 25 mm, with the MPD02 accessory. Mounting plate is delivered, attached on the outside of the enclosure packaging.
• Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
• Mounting requirements: Standard delivery ready for combined installation. For stand-alone installation, add side panels.
• Protection: Complies with IP 55 | TYPE 12 | IK 10.
• Finish: 400 pre-grained stainless steel.
