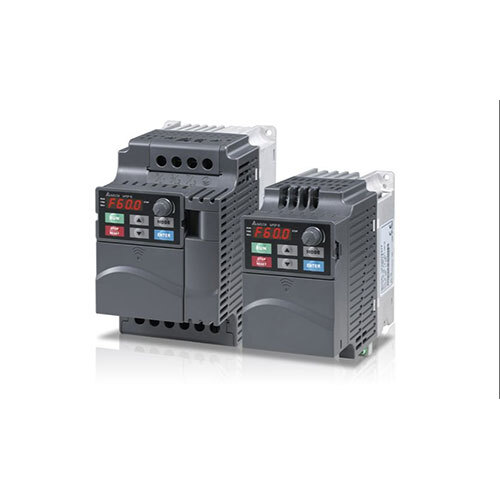

EL Series VFD

About EL Series VFD

Applications

Small size pump  fan blowing machine conveyer belt simple DIY processing equipment

Features

Output frequency 01600Hz

3 points adjustable Vf curve

Builtin PID feedback control

RFIswitch for IT mains

Builtin EMI filter for models 230V 1phase and 460V 3phase

Use RS485 communication interface RJ45 with Modbus protocol

Optional communication modules for multiple communication protocols such as Profibus DeviceNet LonWorks and CANopen

Complete protection function

Range Single Phase  0025HP to 3HP

Range Three Phase  05HP to 5HP

Advanced Motor Control for Industrial Automation

The EL Series VFD empowers seamless motor operation across various industrial applications Offering precise vector and VF control automatic torque boost and wide output frequency range 01 Hz to 400 Hz it guarantees optimal speed and torque management Its dynamic braking and soft start capabilities enhance both performance and motor lifespan making it ideal for demanding environments

UserFriendly Programming and RealTime Monitoring

Parametric adjustment is straightforward with a keypadbased programming system and a clear 7segment LED digital display The VFD simplifies installation and configuration while fault displays and comprehensive protections ensure safe reliable use Builtin and optional communication protocols support integration into modern industrial control networks

FAQs of EL Series VFD

Q How does the EL Series VFD support soft starting of motors

A The VFD implements a soft start mechanism gradually increasing voltage and frequency during motor startup This minimizes mechanical stress on the motor and reduces inrush current thereby extending the lifespan of connected equipment

Q What types of motors can be controlled with the EL Series VFD

A It is compatible with both induction and synchronous motors making it suitable for a broad spectrum of industrial applications requiring precise speed and torque control

Q Where can the EL Series VFD be installed and what are the mounting options

A The VFD is designed for flexible installation supporting both wallmount and panelmount options to accommodate various industrial layouts and control panels

Q What communication protocols are available for remote monitoring and control

A The EL Series VFD features builtin Modbus RTU and RS485 communication protocols with an optional RS232 interface This enables seamless remote control and integration with industrial automation systems

Q What are the benefits of the dynamic braking function in this VFD

A Dynamic braking allows the drive to rapidly decelerate the motor enhancing safety and operational efficiency in applications where quick stopping is necessary such as conveyors or machinery with high inertia loads

Q How is parameter setting and configuration handled on the EL Series VFD

A Programming and parameter adjustments can be performed easily using the integrated keypad and the 7segment LED digital display offering clear feedback and straightforward navigation through settings

Q What protective features ensure safe and reliable operation of the VFD

A Integrated protections against overvoltage undervoltage overcurrent and overloads along with fault displays provide high reliability and help prevent damage to both the drive and connected motors
