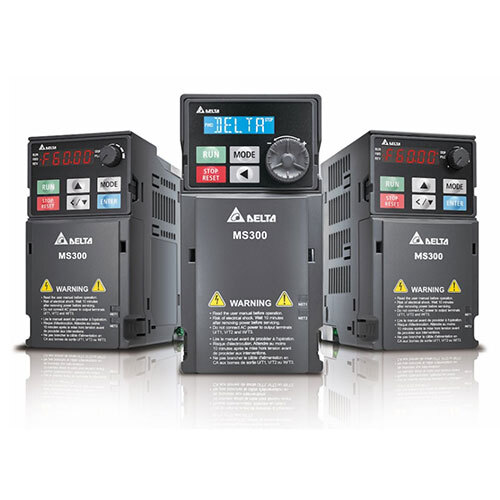

MS300 Series VFD
Product Details:
- Processor Type Digital Signal Processor (DSP)
- Remote Control Yes
- Automation Grade Automatic
- Cable Length Customizable
- Connectivity Type Modbus, RS-485, Optional Ethernet
- Speed Range 0.01 - 599 Hz
- Load Capacity Heavy Duty (150%) / Normal Duty (120%)
- Click to View more
X
MS300 Series VFD Product Specifications
- 0.2 kW to 22 kW
- LCD Display
- -10C to 50C
- IP20
- Approx. 1.0-3.5 kg (depending on model)
- General Motor Control, HVAC, Pumps, Fans, Conveyors
- Current Sensor, Temperature Sensor
- Single/Three Phase
- Panel Mount, DIN Rail Mount
- Vector Control, V/F Control
- 50/60 Hz
- Variable Frequency Drive
- Built-in PLC, EMI filter, Overload Protection, EMC Compliance
- 0.01 - 599 Hz
- Heavy Duty (150%) / Normal Duty (120%)
- Plastic, Metal
- 200-240V, 380-480V AC
- Automatic
- Customizable
- Modbus, RS-485, Optional Ethernet
- Digital Signal Processor (DSP)
- Yes
Product Description
Applications
Machine tools, textile machines, woodworking machines, packaging machines, electronics, fans, pumps, air compressors
Features:
- Supports Open loop control of IM and PM motors
- Standard models: 0 to 599 Hz
- High speed models: 0 to 1,500 Hz (V/f control for IM motor only)
- 120% for 60 seconds for Normal Duty (ND)
- 150% for 60 seconds for Heavy Duty (HD)
- Built-in PLC program with 2K steps capacity
- Built-in brake choppers for the entire series
- Removable 5-digit LED keypad for remote operation
- Safety standard compliance: Safe Torque Off (SIL2/PLd)
- Multi-motor Controlbuilt-in four IM motor control parameters
- Optional built-in Class A (C2) standard EMC filter for 1-phase 230V, 3-phase 460V models
- One high speed pulse input terminal MI7 built-in with maximum speed up to 33kHz
- One high speed pulse output terminal DFM built-in with maximum speed up to 33kHz
- New PCB coating for circuit (IEC 60721-3-3 class 3C2) and thermal design suitable for harsh environment applications
- Built-in RS-485 (Modbus) and various communication card options : CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT, PROFINE.
Range: Single Phase 0.5HP to 3HP
Range: Three Phase 0.5HP to 30HP
Advanced Motor Control and Flexibility
Experience full compatibility with both induction and permanent magnet motors using the MS300 Series VFD. The versatile control options, including vector and V/F control, ensure optimal performance across applications in general motor control, HVAC, and conveyor systems. Enjoy precision speed regulation (0.5%) and dynamic operations with a broad frequency range (0.01-599 Hz).
Enhanced Reliability and Protection
Rely on built-in safety features like overload protection (up to 200% for 3 seconds) and a robust EMC filter (Type C2, EN61800-3 compliant), offering safe and stable operation. Forced air cooling maintains ideal temperatures, and IP20-rated design ensures safe use even in challenging industrial settings.
User-Friendly Design with Expandable Connectivity
With a removable, copyable handheld panel, LCD display, and flexible digital and analog I/O, the MS300 VFD simplifies setup, monitoring, and programming. Expandable input/output capability, support for Modbus and RS-485, and optional Ethernet connectivity enable easy integration into diverse automation systems.
FAQ's of MS300 Series VFD:
Q: How does the MS300 Series VFD support motor compatibility for different applications?
A: The MS300 Series VFD is engineered to operate with both induction and permanent magnet motors, allowing flexible deployment in a wide array of automation applications-ranging from HVAC and pumps to conveyors-enabling precise control and energy efficiency.Q: What overload protection features are included in the MS300 VFD, and how do they enhance operational safety?
A: This VFD features robust overload protection, allowing 150% load for 60 seconds and 200% for 3 seconds, which protects motors from damage during transient overloads and ensures long-term reliability in demanding industrial environments.Q: When should I use the built-in braking unit, and for which models is it available?
A: The built-in braking unit is available in MS300 models rated up to 22 kW and is recommended for applications with frequent stops or deceleration, such as conveyor systems, to improve braking efficiency and protect mechanical components.Q: Where can I install the MS300 VFD, and what mounting options are available?
A: The MS300 Series supports flexible installation with panel mount or DIN rail mounting options, making it ideal for integration in standard control cabinets or customized setups in industrial, commercial, and utility settings across India.Q: What is the process for remote control or monitoring of the MS300 VFD?
A: You can operate and monitor the VFD remotely by using the LCD handheld panel or through communication interfaces such as Modbus, RS-485, or optional Ethernet cards. These options allow seamless integration with SCADA or PLC systems for real-time control and data acquisition.Q: How can I benefit from the built-in EMC filter and PLC functions in the MS300 Series?
A: The integrated EMC filter minimizes electromagnetic interference to comply with EN61800-3 standards, ensuring stable drive operation. The built-in PLC enables basic automation tasks directly within the drive, reducing the need for external control hardware.Tell us about your requirement
