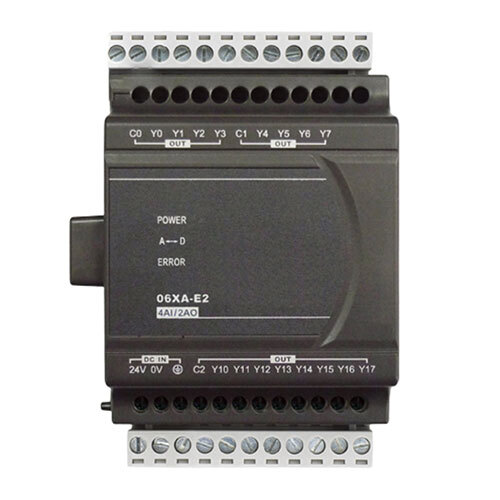

DVP-ES3-2 Series Expansion Module
Product Details:
- Weight Approx. 200250 g
- Mounting Type DIN Rail Mount
- Load Capacity Depends on model variant
- Cable Length As required
- Application PLC Expansion for Delta DVP series controllers
- Control Type Digital
- Remote Control Yes
- Click to View more
X
DVP-ES3-2 Series Expansion Module Product Specifications
- Microprocessor-based
- Single Phase
- Yes
- Modular expansion, high-speed operation, compact design
- RS-485
- 0C to 55C (operating)
- IP20
- 50/60 Hz
- Automatic
- 24 VDC
- DIN Rail Mount
- Depends on model variant
- As required
- Plastic and metal
- 24 V DC 10%
- Approx. 200250 g
- Digital
- PLC Expansion for Delta DVP series controllers
Product Description
Applications : HVAC, printing machine, packaging machine, molding injection machine, inspection system
Specifications:
- Digital modules (output/input/mix): 8,16, 32(AC power)
- Analog modules (output/input/mix): 4 channel, 6 channel inputs (14-bit)
- Temperature measurement modules: conversion time 200ms/channel, overall accuracy +/-0.6%, resolution RTD inputs Pt100 / Pt1000 / Ni100 / Ni1000, thermocouple inputs J, K, R, S, T, E, N type
- Resolver modules: distance 50M, resolution 12-bits, 500rpm, disconnection detection is supported
Flexible and Scalable Expansion
The DVP-ES3-2 Series Expansion Module allows users to scale Delta DVP PLC systems easily with 8, 16, or 32 input and output points. This modular approach supports up to 8 modules per main unit, providing a customizable solution for complex automation requirements. Its versatility is further enhanced by compatibility with multiple Delta DVP controller series.
Reliability in Challenging Environments
Designed for industrial reliability, the module operates in temperatures from 0C to 55C and withstands storage conditions from -25C to 70C. Its robust design ensures stability even at high humidity levels (5% to 95%, non-condensing), making it suitable for the Indian automation sector's demanding environments.
High-Speed Digital Performance
Engineered for quick response, the DVP-ES3-2 achieves a response time of less than 2 milliseconds. This rapid performance, combined with options for relay or transistor (NPN/PNP) outputs and reliable photocoupler isolation, ensures safe and efficient processing of automation tasks.
FAQ's of DVP-ES3-2 Series Expansion Module:
Q: How do I select the appropriate DVP-ES3-2 Series Expansion Module for my PLC system?
A: Choose the model based on your required number of digital input and output points (8, 16, or 32). Consider output type (relay or transistor NPN/PNP), compatibility with your Delta controller series, and required communication ports (such as RS-232 or RS-485) to ensure seamless integration.Q: What is the installation process for the DVP-ES3-2 Expansion Module?
A: Installation involves mounting the module on a DIN rail within your control panel and connecting it to the main Delta DVP PLC unit. Ensure wiring complies with the 24V DC power requirement and appropriate signal connections. Expansion is straightforward, enabling up to 8 modules in one system.Q: Where can the DVP-ES3-2 Series Expansion Module be used?
A: The module is suitable for a wide range of industrial automation applications, including manufacturing plants, process automation, and machine control. Its robust design supports operation in environments with varying temperatures and humidity levels, serving industries across India.Q: What are the benefits of using photocoupler isolation in this module?
A: Photocoupler isolation protects the controller and connected devices from electrical noise and voltage spikes, enhancing overall system reliability and continuity during operations in noisy industrial settings.Q: When is it necessary to expand a Delta DVP PLC system using the DVP-ES3-2 module?
A: Expansion is needed when your automation requirements exceed the I/O capacity of the main controller. Adding the DVP-ES3-2 module enables you to increase control points without system replacement, saving both time and cost.Q: What advantages does the high-speed response time provide?
A: A response time of less than 2 milliseconds ensures rapid execution of control commands, which is critical for applications demanding real-time performance such as high-speed manufacturing and process controls.Q: How does remote control and communication work with this expansion module?
A: The DVP-ES3-2 module supports RS-232/RS-485 communication ports (model dependent), allowing for remote configuration and monitoring. This connectivity is beneficial for integrating the module into larger, distributed automation systems.Tell us about your requirement
