Send InquiryA2 SERIES 400 V - WITHOUT BRAKE ABSOLUTE
A2 SERIES 400 V - WITHOUT BRAKE ABSOLUTE Specification
- Mounting Type
- Flange Mount
- Features
- Compact Design, High Efficiency, Maintenance Free
- Phase
- Three Phase
- Processor Type
- DSP Embedded
- Drive Type
- Servo Drive
- Frequency
- 50/60 Hz Hertz (HZ)
- Sensor Type
- Absolute Encoder
- Remote Control
- Yes
- Weight
- 2.5 kg - 15 kg (Depending on model) Kilograms (kg)
- Control Type
- Servo Control
- Speed Range
- Up to 6000 RPM
- Cable Length
- Standard: 3m (custom available) Meter (m)
- Connectivity Type
- EtherCAT, Mechatrolink, Analog Input
- Automation Grade
- Automatic
- Application
- Industrial Automation, CNC Machines, Robotics
- IP Rating
- IP65
- Material
- Aluminum Alloy
- Temperature
- 0C to 40C (Operating) Celsius (oC)
- Voltage
- 400 V Volt (v)
- Motor Type
- AC Servo Motor
- Insulation Class
- F Class
- Shaft Type
- Keyed / Optional Straight
- Vibration Resistance
- Excellent (per manufacturer data)
- Protection Features
- Overload, Overcurrent, Overheat, Overvoltage
- Encoder Resolution
- 17-bit/23-bit Absolute Encoder
- Cooling Method
- Natural Cooling / Surface Cooling
- Brake
- Without Brake
- Standards
- IEC / JIS Compliant
- Bearing Type
- Deep Groove Ball Bearing
About A2 SERIES 400 V - WITHOUT BRAKE ABSOLUTE
|
Torque Nm |
Rated RPM |
Output Watts |
|
Motor |
Driver |
|
3.18 |
3000 |
1000 |
Low Inertia |
ECMA- JA1010RS |
ASD- A2- 1043-M |
|
6.37 |
3000 |
2000 |
ECMA- JA1020RS |
ASD- A2- 2043- M |
|
|
9.55 |
3000 |
3000 |
ECMA- JA1330R4 |
ASD- A2- 3043-M |
|
|
4.77 |
2000 |
1000 |
Medium Inertia |
ECMA- KA1310RS |
ASD- A2- 1041-M |
|
7.16 |
2000 |
1500 |
ECMA- KA1315RS |
ASD- A2- 1541-M |
|
|
9.55 |
2000 |
2000 |
ECMA- KA1320RS |
ASD- A2- 2043-M |
|
|
19.1 |
1500 |
3000 |
High Inertia |
ECMA- LA1830RS |
ASD- A2- 3043-M |
|
28.65 |
1500 |
4500 |
ECMA- LA1845RS |
ASD- A2- 4543-M |
|
|
35.01 |
1500 |
5500 |
ECMA- LA1845R3 |
ASD- A2- 5543-M |
|
|
47.47 |
1500 |
7500 |
ECMA- LA1875R3 |
ASD- A2- 7543-M |
Advanced Servo Technology for Precision Control
Experience precise motion control with the A2 SERIES servo motor, equipped with high-resolution absolute encoders (17-bit/23-bit) and DSP-embedded control. Designed for seamless integration into automation systems, it enables accurate positioning essential for robotics, CNC, and process automation.
Reliable Performance and Robust Protection
Equipped with robust protection features such as overload, overcurrent, overheat, and overvoltage safeguards, this motor ensures operational safety and reliable performance. Its IP65 rating and vibration-resistant construction make it suitable for demanding industrial environments.
Versatile Applications and Easy Integration
The A2 SERIES servo motor is tailored for a variety of industrial uses, such as automation lines, CNC machinery, and robotic systems. It supports EtherCAT, Mechatrolink, and analog input connectivity, adapting seamlessly to your preferred control system. Its compact and maintenance-free design simplifies installation and long-term operation.
FAQ's of A2 SERIES 400 V - WITHOUT BRAKE ABSOLUTE:
Q: How do I install the A2 SERIES 400 V - WITHOUT BRAKE ABSOLUTE servo motor?
A: Installation involves securing the motor using the flange mount to your equipment and connecting it with standard 3m cables (with custom options available). Ensure proper alignment of the keyed or straight shaft as required, and connect the motor to your servo drive using the supported connectivity protocols such as EtherCAT or Mechatrolink.Q: What benefits does the high-resolution absolute encoder offer in this servo motor?
A: The 17-bit or 23-bit absolute encoder enables precise and positioning, which is crucial for applications requiring accuracy, such as CNC machines and robotics. It allows the system to retain shaft position information even after power cycles, improving reliability and reducing setup time.Q: Where can the A2 SERIES AC servo motor be used?
A: This servo motor is ideal for industrial automation, CNC machines, and robotics. It complies with IEC/JIS standards, supports three-phase 400 V systems, and is distributed widely in India by authorized dealers, distributors, exporters, retailers, suppliers, traders, and wholesalers.Q: What is the process for selecting the right model variant?
A: Choosing the appropriate model depends on your application's power requirements (0.4 kW to 6 kW), load capacity (up to 20 Nm), desired encoder resolution, shaft type, and cooling method. Consulting with a supplier or distributor can help tailor the motor configuration to your specific needs.Q: How does the IP65 rating benefit industrial operations?
A: The IP65 rating ensures protection against dust and water jets, making the motor well-suited for harsh environments or where frequent machine cleaning is necessary. This enhances reliability and prolongs service life in industrial settings.Q: When is remote control functionality useful for this servo motor?
A: Remote control is advantageous when the motor must be monitored or adjusted from a distance, such as in automated lines or machine cells where direct access is limited. This improves safety and operational efficiency.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Servo Motor & Drive Series Category
A2 SERIES 400 V - WITH BRAKE ABSOLUTE
Material : Aluminum Alloy Body
Automation Grade : Automatic
Connectivity Type : Wired/Bus Communication
Cable Length : Standard 3m; extension optional
Voltage : 400 V AC
Application : Industrial Automation / Servo Drives / CNC Machinery
A2 SERIES 200V ABSOLUTE FOR 17-BIT WITHOUT BRAKE 220V
Material : Highgrade Aluminum Alloy casing
Automation Grade : Automatic
Connectivity Type : Integrated Encoder connection
Cable Length : Standard 2 meters Meter (m)
Voltage : 220V AC Volt (v)
Application : Industrial Motion Control
Delta B2 SERIES Servo motor and Drives - WITH BRAKE
Material : Aluminum Alloy (housing), Copper (winding)
Automation Grade : Automatic
Connectivity Type : RS485, Analog, Pulse/Direction
Cable Length : 3 Meters Standard Meter (m)
Voltage : 200230 VAC Volt (v)
Application : CNC Machines, Robotics, Packaging Machinery, Textile Machinery, Conveyor Systems

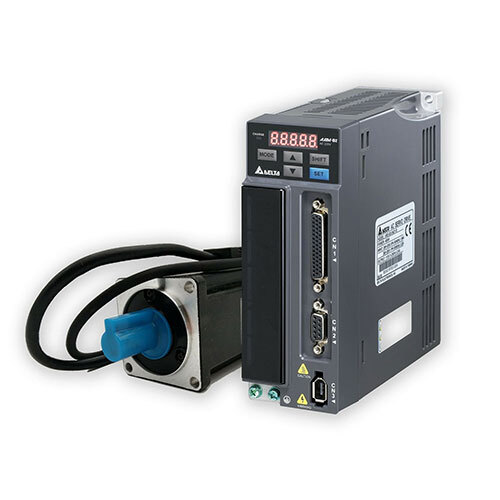

A2 SERIES 200V ABSOLUTE FOR 17-BIT WITH BRAKE 220V
