Product Description

Stainless Steel Terminal Box

The stainless steel terminal box range, SSTB, with a IP 66 protection degree, is available off the shelf in many different sizes. The SSTB range is well suited for indoor and outdoor environments thanks to its corrosion resistance.

Features:

Material: AISI 304L pre-grained stainless steel / AISI 316L (on request). Body: 1 mm. Cover: 1.5 mm.
Body: Folded and seam welded. Four M6x13 studs for bottom profile / mounting plate fixation. For ease of installation, each back corner of the enclosure is laser-marked to precisely indicate where to drill holes and affix AWS wall mounting brackets.
Gasket: Sealing is ensured by an injected polyurethane gasket. For AISI 316L, sealing is ensured by an injected silicone gasket.
Earthing: M8x18 mm earthing studs in body and cover, M8 nuts, earthing washers and earthing labels.
Protection: IP 66 | TYPE 4X, 12 | IK 08.
Finish: 400 pre-grained stainless steel

Stainless steel terminal box
Height	Width	Depth	Weight
(mm)	(mm)	(mm)	(kg)
150	150	80	1.1
150	150	120	1.3
150	300	80	1.8
150	300	120	2.15
200	200	80	1.65
200	200	120	1.95
200	300	80	2.25
200	300	120	2.55
200	400	80	2.8
200	400	120	3.2
200	500	120	3.9
200	600	120	4.6
200	800	120	5.9
300	300	80	3.05
300	300	120	3.4
300	400	120	4.25
300	500	120	5.1
300	600	120	6.1
400	400	120	5.5
400	600	120	7.65
400	800	120	9.7

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Junction Box - Terminal Box' category

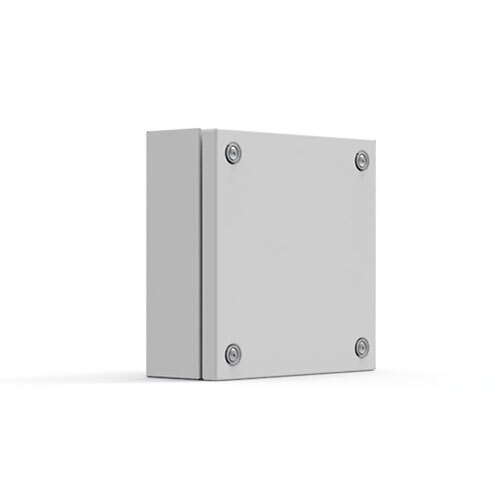

Mild Steel Junction Boxes
