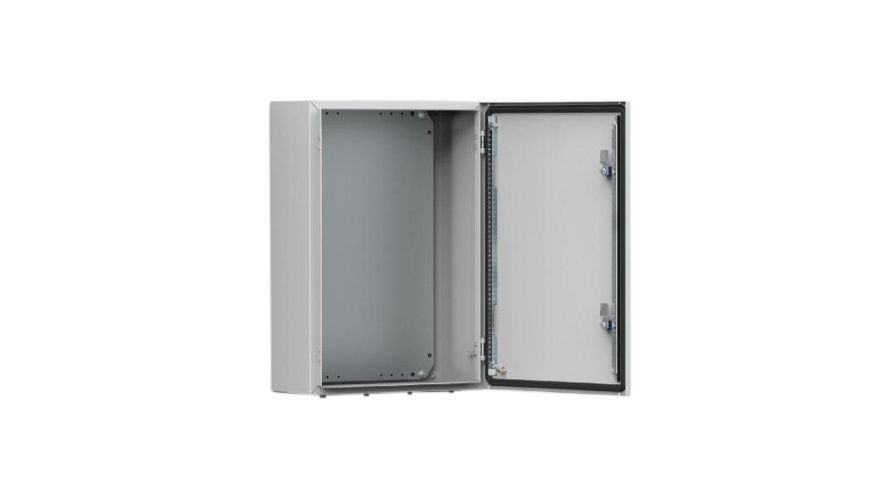

nVent Hoffman Enclosure Mild Steel MAS0604030R5
7300.0 INR
Product Details:
- Material Mild Steel
- Protection Level IP66
- Surface Treatment Powder Coating
- Weight 18.9 Kilograms (kg)
- Color Light Gray
- Warranty 1 Year
- Click to View more
X
nVent Hoffman Enclosure Mild Steel MAS0604030R5 Price And Quantity
- 7300.0 INR
- 1
nVent Hoffman Enclosure Mild Steel MAS0604030R5 Product Specifications
- 1 Year
- Light Gray
- Mild Steel
- IP66
- 18.9 Kilograms (kg)
- Powder Coating
nVent Hoffman Enclosure Mild Steel MAS0604030R5 Trade Information
- O t h [ ' e r s ' ]
- 20 Per Day
- 20 Week
- No
- d i a ' ] I n [ ' A l l
- Industry Standards UL 508A Listed; Type 4, 12; File No. E92044 cUL Listed per CSA C22.2 No.0, No.0.4, No.14, No.94; Type 12; File No. E92044 NEMA/EEMAC Type 4, 12 CSA, File No. 1442951: Type 4, 12 IEC 62208 IP66 KEMA, GOST, Lloyds, DNV, Maritime, CE
Product Description
The mild steel single door wall mounted enclosure range, MAS, with a IP 66 protection degree, is available off the shelf in many different sizes. This enclosure range is well suited for many different applications. The risk for component failure, and with that unnecessary downtime, is eliminated as water and dust are prevented from entering the enclosure.Features
- Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing, pressed out in 20.4 mm diameter 2 mm depressions, to allow air circulation around the rear part of the enclosure.
- Gland Plate Opening: Situated at the far rear of the enclosure, to make cabling onto the mounting plate easier.
- Protection: Complies with IP 66, TYPE 4, 12, IK 10. For outdoor installation, the use of a rain Hood, ARF, and 100% polyester paint coating plus corrosion protection primer is recommended. Resistance to corrosion must be taken into consideration for outdoor and indoor applications.
- Mounting plate: The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment. On the top and bottom there are holes to facilitate cable fixing. Fixed onto M8 press welded studs to the rear of the enclosure. All sides, from 800 mm and above, are strengthened by folded edges. By using the AMG accessory, the mounting plate position can be adjusted to any depth.
- Material: Body: 1.2 mm mild steel for enclosures with a depth of 155 mm / 1.4 mm for enclosures with a depth of 210 or 260 mm / 1.5 mm for enclosures with a depth of 300 or 400 mm, or if a height or width is 1000 mm or greater. Gland plate: 1.4 mm mild steel. Door: 1.2 mm mild steel / 1.5 mm for enclosures with a height or width of 500 mm or greater / 2 mm for enclosures with a height or width of 800 mm or greater. Mounting plate: 2 mm galvanized steel.
- Lock: nVent HOFFMAN customized double-bit 3 mm lock, with 90 movement and anti-vibration mechanism. Two locks for 600 mm high to 800 mm high enclosures. Espagnolette three point locking for 1000 mm high enclosures and above. Other inserts are available as an accessory.
- Finish: RAL 7035 structured powder coating.
- Door: Surface mounted with 130 opening. Concealed removable hinges with captive pin. Hinges can be mounted to allow left or right hand opening. Inner M6 welded studs to mount door profiles MMDP, see delivery. Sealing is ensured by an injected one piece polyurethane gasket.
- Delivery: Enclosure with door and mounting plate (not included for item numbers ending with PER5). For height 600 mm and above, two MMDP door mounting profiles. Gland plate(s) with gasket(s), plastic double-bit 3 mm key, and mounting accessories. Metallic key, for height 1000 mm and above. Earthing facilities.
Specifications
Product Attribute Value
Mounting Plate Included Yes
Latch Quantity 2
Material Mild Steel
Finish Powder Coated
Color Light Gray
Color Code RAL 7035
Height 600 mm
Width 400 mm
Depth 300 mm
Panel Size 570 x 350 mm
Max Mounting Depth 282 mm
Body Thickness 1.5 mm
Door Thickness 1.5 mm
Gland Plate Opening Width 310 mm
Gland Plate Opening Depth 96 mm
Gland Plate Type 2
Gland Plate Quantity 1
Weight 18.9 kg
UPC 783510488314
EAN 8713574129177
Standard Packaging Quantity 1.0000
Packing Quantity 1.0000
