Send InquirynVent Hoffman Enclosure Mild Steel MAS0302515R5
nVent Hoffman Enclosure Mild Steel MAS0302515R5 Specification
- Material
- Mild Steel
- Protection Level
- IP66
- Surface Treatment
- Powder Coating
- Color
- Light Gray
- Warranty
- 1 Year
nVent Hoffman Enclosure Mild Steel MAS0302515R5 Trade Information
- Payment Terms
- Others
- Supply Ability
- 20 Per Day
- Delivery Time
- 1 Week
- Sample Available
- No
- Main Domestic Market
- All India
- Certifications
- UL 508A Listed; Type 4, 12; File No. E92044 cUL Listed per CSA C22.2 No.0, No.0.4, No.14, No.94; Type 12; File No. E92044 NEMA/EEMAC Type 4, 12 CSA, File No. 1442951: Type 4, 12 IEC 62208 IP66 KEMA, GOST, Lloyds, DNV, Maritime, CE
About nVent Hoffman Enclosure Mild Steel MAS0302515R5

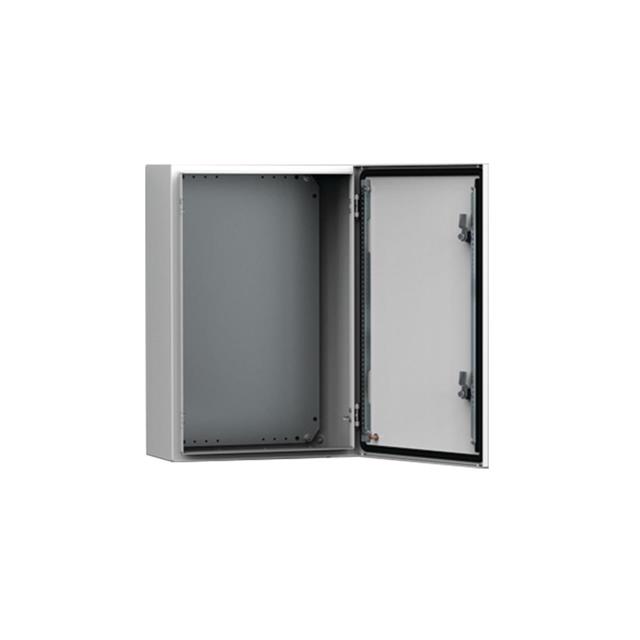

The mild steel single door wall mounted enclosure range, MAS, with a IP 66 protection degree, is available off the shelf in many different sizes. This enclosure range is well suited for many different applications. The risk for component failure, andwith that unnecessary downtime, is eliminated as water and dust are prevented from entering the enclosure.Industry Standards
UL 508A Listed; Type 4, 12; File No. E92044
cUL Listed per CSA C22.2 No.0, No.0.4, No.14, No.94; Type 12; File No. E92044
NEMA/EEMAC Type 4, 12
CSA, File No. 1442951: Type 4, 12
IEC 62208 IP66
KEMA, GOST, Lloyds, DNV, Maritime, CE
Features
- Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing, pressed out in 20.4 mm diameter 2 mm depressions, to allow air circulation around the rear part of the enclosure.
- Gland Plate Opening: Situated at the far rear of the enclosure, to make cabling onto the mounting plate easier.
- Protection: Complies with IP 66, TYPE 4, 12, IK 10. For outdoor installation, the use of a rain Hood, ARF, and 100% polyester paint coating plus corrosion protection primer is recommended. Resistanceto corrosion must be taken into consideration for outdoor and indoor applications.
- Mounting plate: The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment. On the top and bottom there are holes to facilitate cable fixing. Fixed onto M8 press welded studs to the rear of the enclosure. All sides, from 800 mm and above, are strengthened by folded edges. By using the AMG accessory, the mounting plate position can be adjusted to any depth.
- Material: Body: 1.2 mm mild steel for enclosures with a depth of 155 mm / 1.4 mm for enclosures with a depth of 210 or 260 mm / 1.5 mm for enclosures with a depth of 300 or 400 mm, or if a height or width is 1000 mm or greater. Gland plate: 1.4 mm mild steel. Door: 1.2 mm mild steel / 1.5 mm for enclosures with a height or width of 500 mm or greater / 2 mm for enclosures with a height or width of 800 mm or greater. Mounting plate: 2 mm galvanized steel.
- Lock: nVent HOFFMAN customized double-bit 3 mm lock, with 90 movement and anti-vibration mechanism. Two locks for 600 mm high to 800 mm high enclosures. Espagnolette three point locking for 1000 mm high enclosures and above. Other inserts are available as an accessory.
- Finish: RAL 7035 structured powder coating.
- Door: Surface mounted with 130 opening. Concealed removable hinges with captive pin. Hinges can be mounted to allow left or right hand opening. Inner M6 welded studs to mount door profiles MMDP, see delivery. Sealing is ensured by an injected one piece polyurethane gasket.
- Delivery: Enclosure with door and mounting plate (not included for item numbers ending with PER5). For height 600 mm and above, two MMDP door mounting profiles. Gland plate(s) with gasket(s), plastic double-bit 3 mm key, and mounting accessories. Metallic key, for height 1000 mm and above. Earthing facilities.
-
Superior Protection and Finish
Manufactured from mild steel with a powder-coated surface, the MAS0302515R5 enclosure offers outstanding corrosion resistance and durability. Its IP66 rating means it is dust-tight and protects against powerful water jets, making it suitable for harsh industrial settings.
Reliable Supply Across India
As a product supported by a network of dealers, distributors, exporters, traders, and suppliers, the MAS0302515R5 is readily accessible throughout India. Customers can count on prompt supply and after-sales support from authorized channels.
FAQ's of nVent Hoffman Enclosure Mild Steel MAS0302515R5:
Q: How does the nVent Hoffman MAS0302515R5 enclosure provide protection for my equipment?
A: With its IP66 rating, the enclosure ensures total protection against dust and powerful water jets, keeping internal components secure even in challenging environments and minimizing the risk of damage or contamination.Q: What surface treatment is applied to the mild steel enclosure and why is it beneficial?
A: A high-quality powder coating is applied to the mild steel, giving the enclosure increased resilience against wear, weathering, and corrosion, thereby extending its service life.Q: When and where should the MAS0302515R5 enclosure be used?
A: This enclosure is ideal for industrial and commercial installations where high protection from dust and water is required, such as in manufacturing plants, outdoor control panels, and industrial automation systems.Q: What is the warranty period for the MAS0302515R5, and what does it cover?
A: The product is backed by a 1-year warranty covering manufacturing defects, ensuring customers benefit from reliable support and repairs if issues arise during normal use within the warranty duration.Q: What is the process to purchase this enclosure in India?
A: Interested buyers can contact authorized dealers, suppliers, distributors, or retailers across India. These channels ensure product authenticity, timely delivery, and proper warranty support.Q: How should the MAS0302515R5 enclosure be installed and maintained for optimal performance?
A: Professional installation is recommended to ensure a secure fit and proper sealing. Regular inspection of seals and the powder coating finish will help maintain the IP66 protection and extend the enclosure's lifespan.
