Mild Steel Junction Boxes

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

Mild Steel Junction Boxes

The mild steel terminal box range, STB, with a IP 66 protection degree, is available off the shelf in many different sizes. The STB range is well suited for demanding indoor environments.

Features:

Material: 1.2 mm mild steel.
Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing. Four M6 × 13 studs for bottom profiles / mounting plate fixation.
Door: Sealing is ensured by an injected one piece polyurethane gasket.
Earthing: M8x18 mm earthing studs in body and cover, M8 nuts, earthing washers and earthing labels.
Protection: IP 66 | TYPE 4, 12 | IK 08.
Finish: RAL 7035, structured powder coating

Mild steel terminal box
Height	Width	Depth	Weight
(mm)	(mm)	(mm)	(kg)
150	150	80	1.15
150	150	120	1.35
150	300	80	1.9
150	300	120	2.25
200	200	80	1.7
200	200	120	2
200	300	80	2.35
200	300	120	2.75
200	400	80	2.9
200	400	120	3.35
200	500	120	4.1
200	600	120	4.75
200	800	120	6.3
300	300	80	3.15
300	300	120	3.55
300	400	120	4.5
300	500	120	5.4
300	600	120	6.4
400	400	120	5.85
400	600	120	7.8
400	800	120	9.9

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Junction Box - Terminal Box' category

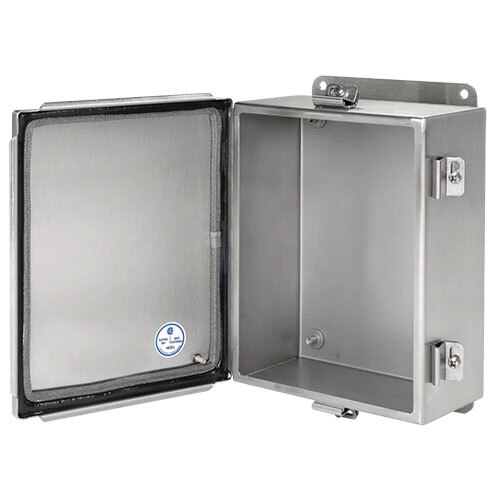

Stainless Steel Junction Box
