Send InquiryBCH Floor Standing Enclosure Box
Price 25900.00 INR/ Unit
MOQ : 1 Unit
BCH Floor Standing Enclosure Box Specification
- Product Type
- Standing Enclosure Box
- Material
- Stainless Steel
- Surface Treatment
- Powder Coating
- Color
- Silver
- Warranty
- 1 Year
About BCH Floor Standing Enclosure Box

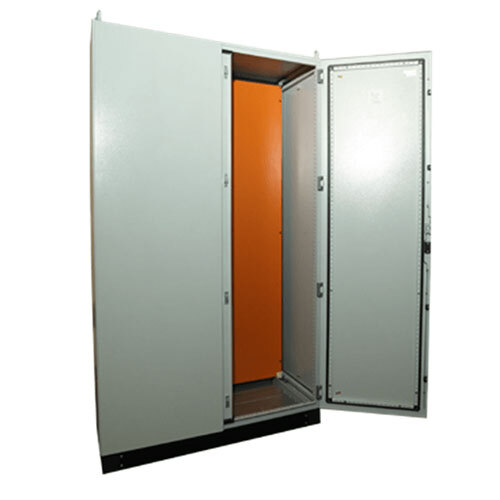

TheBCH TCE Series Floor Standing Electrical Enclosuresare heavy-duty, modular enclosures designed for reliable protection of electrical and automation equipment in industrial environments. These enclosures are manufactured using high-quality CRCA steel and advanced fabrication processes to ensure superior strength, durability, and long service life.
The TCE Series is suitable forcontrol panels, PLC panels, MCC panels, drives, automation systems, and power distribution applications. The enclosure design features a rigid folded structure, PU foam gasket sealing, adjustable mounting plate, and a secure multi-point locking system to protect equipment from dust, water, and mechanical impact.
Key Features-
Robust floor-standing construction with high mechanical strength
-
PU foam gasket for effective dust and water sealing
-
Slidable, depth-adjustable mounting plate with high load-bearing capacity
-
4-point locking system for enhanced safety
-
Interchangeable and removable doors (LHS/RHS)
-
Modular gland plate and optional plinth
-
Smooth powder-coated finish for corrosion resistance
-
Single Front Door Enclosure:IP66, IK10
-
Double Front Door Enclosure:IP65, IK10
-
TCE061804-001 W600 H1800 D400
-
TCE081804-001 W800 H1800 D400
-
TCE081805-001 W800 H1800 D500
-
TCE081806-001 W800 H1800 D600
-
TCE062005-001 W600 H2000 D500
-
TCE082005-001 W800 H2000 D500
-
TCE062006-001 W600 H2000 D600
-
TCE082006-001 W800 H2000 D600
-
TCE082008-001 W800 H2000 D800
-
TCE082008-005 W800 H2000 D800
-
TCE101804-001 W1000 H1800 D400
-
TCE121804-001 W1200 H1800 D400
-
TCE121805-001 W1200 H1800 D500
-
TCE102005-001 W1000 H2000 D500
-
TCE122005-001 W1200 H2000 D500
-
TCE102006-001 W1000 H2000 D600
-
TCE122006-001 W1200 H2000 D600
-
TCE122008-005 W1200 H2000 D800
-
Material:CRCA Steel
-
Frame & Door Thickness:2.0 mm
-
Side / Rear / Top Panels:1.6 mm
-
Mounting Plate:3.0 mm Painted Steel (GI optional)
-
Bottom Gland Plate:2.0 mm Galvanized Steel
-
Surface Finish:
-
Enclosure: RAL 7035
-
Mounting Plate: RAL 2000
-
-
Earthing:M6 Earthing Stud Provided
-
Durable Stainless Steel Construction
Crafted entirely from stainless steel with a high-quality powder coating, the BCH Floor Standing Enclosure Box offers superior resistance to moisture, chemicals, and physical impact. This makes it a dependable choice for challenging industrial environments where durability is paramount.
Reliable Protection for Electronics
Engineered to safely store electrical panels and sensitive equipment, the enclosure ensures your devices are shielded from dust, dirt, and accidental contact. Its thoughtful design suits a range of applications in commercial and industrial spaces.
FAQ's of BCH Floor Standing Enclosure Box:
Q: How is the BCH Floor Standing Enclosure Box installed?
A: The enclosure is designed for floor standing installation, providing stability and easy access for maintenance or equipment upgrades. Step-by-step installation guidance is typically included in the product documentation.Q: What materials are used in the construction of this enclosure box?
A: The enclosure is made entirely of stainless steel and finished with a robust powder-coated layer, which enhances its strength and corrosion resistance.Q: When should I consider using a stainless steel enclosure box like this?
A: These boxes are ideal when you need to protect sensitive electronic or electrical equipment in environments exposed to harsh conditions, such as factories or production facilities, thanks to their strength and corrosion resistance.Q: Where can I purchase the BCH Floor Standing Enclosure Box in India?
A: This enclosure box is available across India through multiple channels, including dealers, distributors, exporters, retailers, suppliers, traders, and wholesalers.Q: What is the process for warranty claims?
A: All units come with a one-year warranty. To initiate a claim, contact your original supplier, dealer, or distributor with your purchase details for assistance.Q: How does the powder coating benefit the enclosure's performance?
A: The powder coating not only gives the enclosure a sleek silver finish but also provides an extra layer of protection against scratches, chemicals, and environmental factors, extending the life of the enclosure.Q: What are the main uses of the BCH Floor Standing Enclosure Box?
A: Primarily, it is used to securely house electrical and electronic equipment, ensuring safety, organization, and reliable operation in both industrial and commercial environments.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in BCH Category
BCH Wall Mounting Enclosure Box
Price 2000 INR / Piece
Minimum Order Quantity : 100 Pieces, Piece
Color : Silver
Product Type : Enclosure Box
Surface Treatment : Powder Coating
Material : Metal
BCH Floor Standing Enclosure
Color : Grey (RAL 7035)
Product Type : Semi Modular Enclosure
Surface Treatment : Other, Powder Coated
Material : Other, Mild Steel

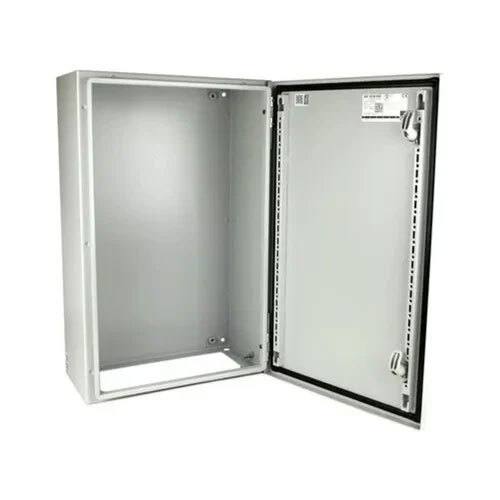

Wall Mounted-SS Boxes (Stainless Steel)
Color : Silver
Product Type : Wall Mounted SS Box
Surface Treatment : Other, Brushed finish
Material : Other, Stainless Steel 304

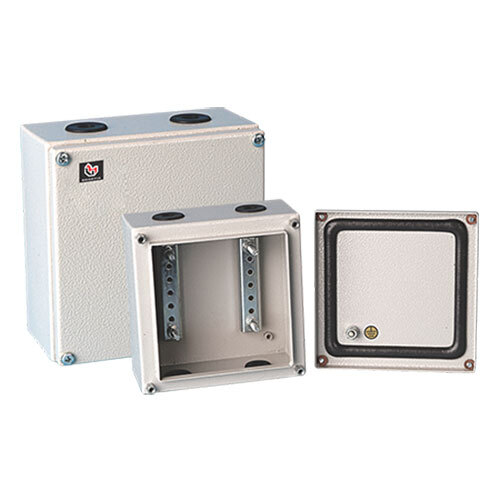

BCH Terminal Enclosure Box
